MPIF Material Standard: How to Decode PM Grade Designations

JH PM Engineering Department · Published: September 2026

An MPIF material standard is the de facto language of North American powder metallurgy sourcing. Whether a buyer or a supplier, the cost of misreading the code on a drawing is measured in scrapped lots, audit disputes, and missed launches.

The Five Volumes of the MPIF Standard 35 Family

The phrase “the MPIF material standard” is shorthand for a family of five documents, each scoped to a different PM process route. Picking the right volume is the first decision on a drawing – the wrong volume can hold the part to minimums that the manufacturing process cannot actually achieve.

The two volumes a procurement engineer sees on 95 percent of structural drawings are Standard 35 (structural press-and-sinter) and 35-SLB (bearings). The other three sit in process-specific silos and are not interchangeable on the same drawing.

How to Decode an MPIF Material Designation

An MPIF material designation is a compact four-segment code. Reading it left to right gives you the base, the alloying element, the alloying percent, the carbon content, and – if the suffix is present – the strength class.

The first two characters carry the chemistry. F is the base metal (iron). C, N, L, D, X mark the alloying approach:

The two-digit number after the prefix is the alloy content in weight percent (for copper, nickel, etc.). The next two-digit number is the combined carbon content in 0.1 percent increments. The suffix after the dash is the strength class – and this is where most engineering mistakes begin.

The Strength-Suffix Myth: What the Trailing Number Really Means

The trailing number on an MPIF material designation is the minimum yield strength expressed in ksi (kilo-pounds per square inch). It is not a density value, and reading it as one is the single most expensive error in PM material sourcing.

To convert: 1 ksi = 6.895 MPa. A “-50” suffix means a minimum yield of 50 ksi (345 MPa), a “-60” suffix means 60 ksi (414 MPa), and a “-80” suffix means 80 ksi (552 MPa). Higher suffix numbers demand more compaction pressure, higher sintered density, and frequently a prealloyed or heat-treated grade rather than an admixed one.

Minimum vs Typical: The Contractual Difference

MPIF Standard 35 publishes two columns of mechanical properties for each grade. The distinction is contractual, not academic:

This is the single most expensive misunderstanding in PM sourcing. A design engineer who sizes a structural PM bracket against the typical yield of FC-0208-50 (around 45 ksi) builds in zero safety margin against a perfectly conforming 35 ksi minimum part. The bracket is “under specification” only if the drawing is miswritten – and the miswriting usually traces back to conflating the two columns.

The fix is mechanical: every mechanical property on a PM drawing should be called out as either “minimum per MPIF Standard 35 (2024 Edition)” (binding) or “typical for reference only” (design guidance). Never write a number without a column label.

MPIF vs ASTM B783 vs ISO 5755:2022: They Are Not Interchangeable

Three standards get cited on PM drawings. They cover overlapping material families, but each has different minimums, different test methods, and different acceptance rules. Quoting all three on a single drawing without a “governing standard” line is a known source of incoming-inspection contradiction.

If your drawing carries all three – “MPIF FC-0208-50 per MPIF 35 / ASTM B783:24 / ISO 5755:2022” – and the three standards disagree on a minimum value for the same grade, the supplier and buyer will spend the next month arguing about which value wins. The fix: pick one as the governing standard and reference the others for information only.

How to Write a Holdable PM Drawing Callout

Vague callouts like “sintered steel, structural grade” or “MPIF material as applicable” are unenforceable. A holdable PM material callout has five parts, each tied to a named standard with an edition year:

1. Standard family and edition. Name the MPIF Standard 35 volume and the edition year, for example MPIF Standard 35 (2024 Edition).
2. Full grade designation with strength suffix. Quote the complete code, for example MPIF FC-0208-50 or MPIF FLN2-4405-HT. Do not abbreviate the suffix.
3. Minimum density and inspection location. Per ASTM B962 (Archimedes) or MPIF Standard 42, state the minimum and the location, for example Density ≥ 6.85 g/cm³ in tooth root, ≥ 6.6 g/cm³ in web.
4. Mechanical property test method and acceptance. For tensile, cite MPIF Standard 44 with a minimum yield and ultimate value. For microhardness, cite MPIF Standard 51. For apparent hardness, cite ASTM E18 as reference only.
5. Governing standard line. When multiple standards are cited, name the single one that governs, for example Governing: MPIF Standard 35 (2024 Edition); ASTM B783:24 and ISO 5755:2022 for reference only.

The same five rules are recast as a stand-alone checklist at the end of this page so a buyer can tick them down line by line before sending an RFQ.

The Five-Step Spec Checklist, As a Single List

For buyers who want to print and tick a checklist against their drawing before sending an RFQ.

1. Pick the right Standard 35 volume for the part geometry — select the Standard 35 family that matches the part: 35 (Structural Parts) for press-and-sinter, 35-SLB for self-lubricating bearings, 35-MIM for injection-molded geometry, 35-PF for powder-forged density, 35-AM for sinter-based additive parts. The volume determines which minimums and test methods apply.
2. Write the full designation with strength suffix — quote the complete grade code with the strength suffix and the edition year, for example “MPIF FC-0208-50 per MPIF Standard 35 (2024 Edition)”. The suffix is the minimum yield in ksi; the edition year prevents silent substitution of an older or newer material minimum.
3. Call out minimum density and the location where it applies — state the minimum density in g/cm³ and the inspection location per ASTM B962 (Archimedes) or MPIF Standard 42, for example “Density ≥ 6.85 g/cm³ across tooth root, ≥ 6.6 g/cm³ in web”. A density call without a location is unenforceable.
4. Specify the test method and acceptance criterion — for each property, name the test method and the acceptance value. Use MPIF Standard 51 for microindentation hardness, MPIF Standard 44 for tensile testing, and ASTM E18 only for apparent hardness as a reference. State “minimum” for binding values, “typical for reference only” for design data.
5. Send the drawing for a 48-hour DFM review — before the spec is frozen, send the drawing, duty profile, lot size, and target cost to a PM supplier for a written DFM review. The review returns the achievable density window, recommended secondary operations, edition-year compatibility, and a price delta. No die should be cut before this.

What the MPIF Material Standard Does Not Cover

A responsible engineering callout also names what the standard is silent on. MPIF Standard 35 is a material specification, not a part specification. The following are the buyer’s responsibility, not the supplier’s:

• Machining allowances. As-sintered surfaces are not at print tolerance. The buyer must call out which surfaces require sizing, re-pressing, or post-sinter machining, and to what tolerance.
• Tight tolerance bands below the standard ±0.05 mm window. Tolerance below as-sintered is achievable but is a secondary operation (sizing, grinding, honing). The drawing must explicitly request the tightened tolerance, not assume it.
• Corrosion performance in service environments. The standard gives material chemistry, not environmental ratings. A 316L stainless part in chloride-rich marine exposure still requires buyer-side validation.
• Surface treatment specifics. Steam treatment, nitriding, copper infiltration, oil impregnation – all are post-sinter operations outside the scope of the material standard. The drawing must call these out as separate process lines.
• Regulatory and certification scope. Medical (ISO 13485), aerospace (AS9100), and automotive (IATF 16949) certifications are program-level, not material-level. The supplier’s certification scope must be confirmed in the contract, not assumed from the material callout.

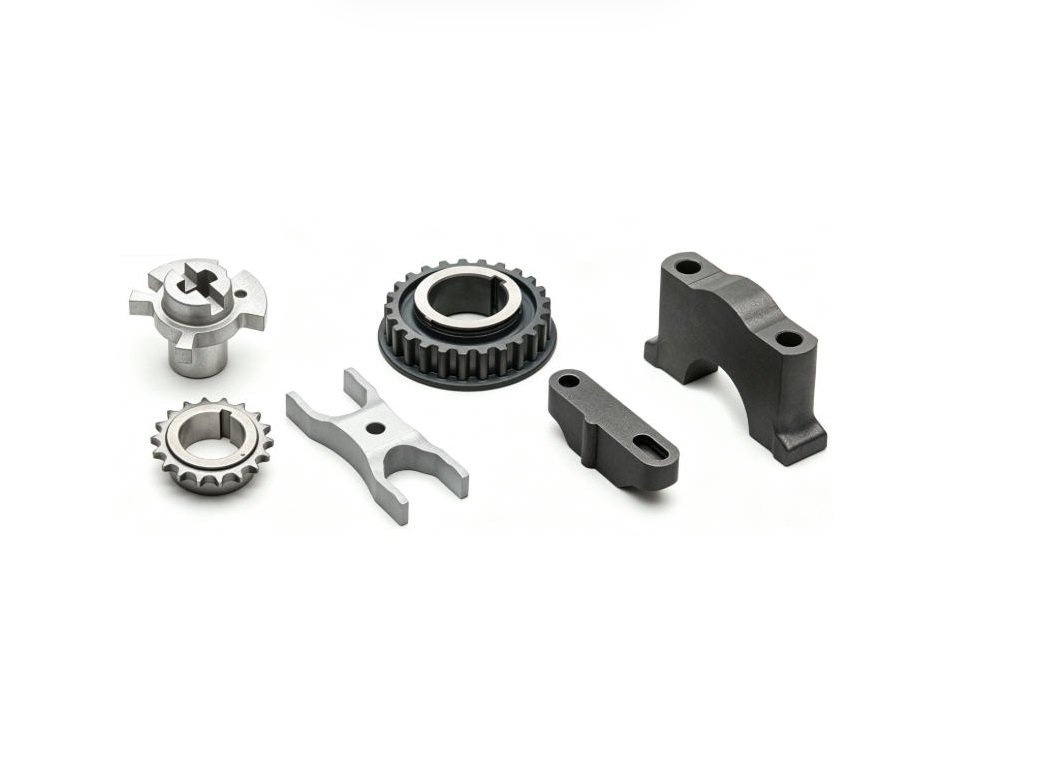

JH PM Facility Capability & Supplier Execution

JH PM (Ningbo Jiehuang Chiyang Electronic Tech) engineers and manufactures to MPIF-aligned material standards on its Shaoxing line, alongside Kunshan and Ningbo production bases, for global automotive, industrial equipment, and power-tool programs:

• Compaction presses: 19 automated PM presses ranging from 6 to 1,000 tons, covering both high-speed small components and large multi-level structural parts.
• Thermal infrastructure: 2 continuous sintering furnaces with continuous oxygen and hydrogen dew-point monitoring for atmosphere control per MPIF-recommended practice.
• Material alignment: iron-base, copper-infiltrated iron, prealloyed Ni-Mo steel, and austenitic / ferritic stainless (316L, 17-4 PH, 409L per 2024 Ed.) produced to MPIF 35 grade families. Material test reports per heat lot, certified against the edition year on the drawing.
• Quality control and metrology: certified to IATF 16949:2016 and ISO 9001:2015. Density per ASTM B962 (Archimedes), microhardness per MPIF Standard 51, apparent hardness per ASTM E18, dimensional layouts across 3 German Zeiss CMMs.
• Commercial terms: standard production MOQ of 2,000 pieces; tooling turnaround in 25 working days; T0 first-article delivery in 35 working days; DFM feasibility reviews within 48 hours.
